    Broken Carb?

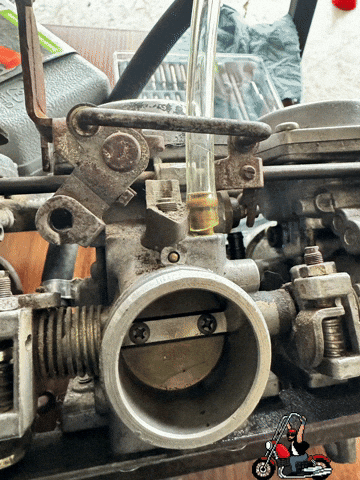

    Hey guys new member here! First time owning and working on a motorcycle so I’m pretty green. That being said, I pulled the carbs off the bike to rebuild them and made a lovely discovery. Someone has broken the cavity that the pilot screw goes into and tried to fix it with some type of material I can only imagine is JBweld. Am I correct in assuming this carb is now trash?

    Linked photo

    (tried uploading image, too big apparently)
    Tony H
    1981 GS750L

    #2

    Attached link wasn’t working


    Tony H
    1981 GS750L

    Comment


      #3
      Welcome, Tony.

      Those posts often have slots cut in them to facilitate getting a beefier tool on the screw because it’s stuck. If there are enough threads down inside, you may get lucky.

      That said, you’ll want to follow a Proper CV cleaning/rebuild tutorial like this one written by Ed Ness (Nessism).


      Ed also sells full oring kits for your carbs. You’ll need it. Go to any post by Nessism, check his signature for link on how to order.

      Another thread you need to read is the Top Ten Newbie Mistakes Thread. Guess who wrote it.
      1A) (NEW) Trying to diagnose running problems on a bike with an unknown maintenance history. Common maintenance items like clean carbs, properly adjusted valves, no air leaks in the intake system (airbox, carb boots), a clean gas tank (no rust), and a properly functioning petcock are 100% mandatory for the bike to run properly.
      Rich
      1982 GS 750TZ
      2015 Triumph Tiger 1200

      Comment


        #4
        If the threads on the mixture screw are mostly in the carb body, no problem
        1978 GS 1000 (since new)
        1979 GS 1000 (The Fridge, superbike replica project)
        1978 GS 1000 (parts)
        1981 GS 850 (anyone want a project?)
        1981 GPZ 550 (backroad screamer)
        1970 450 Mk IIID (THUMP!)
        2007 DRz 400S
        1999 ATK 490ES
        1994 DR 350SES

        Comment
