Gear Positioning Sensor not working

[jasonadams74]

Guys,
After my complete rebuild, my Gear Positioning Sensor no longer works. I have power and I have tested it all the way down the sensor itself. For example, using a test light when in neutral the test light will work when touching the GPS pad little circle where neutral is.

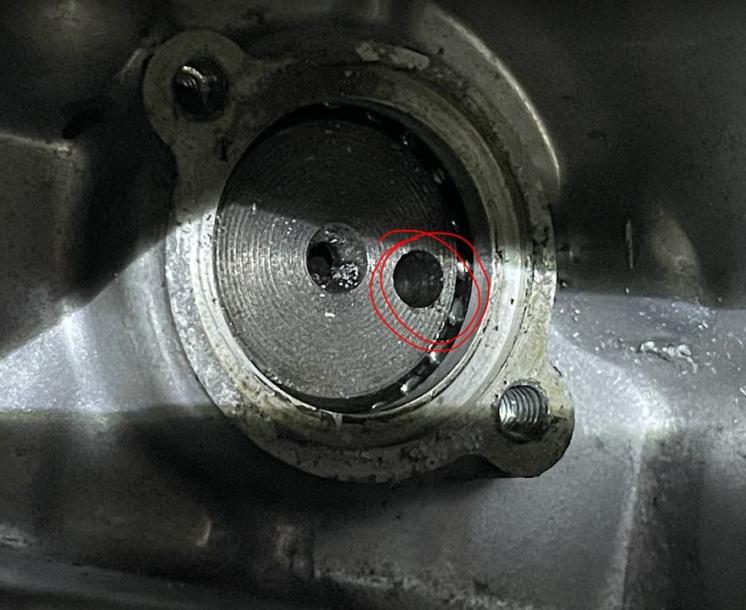

Question for you guys, I think I am missing a contact point of some kind? Like a little bullet? Here is a picture of the bike itself. Should something be in the GPS hole that makes contact with the GPS pad? 1980 GS1000G
See attached photo

[Rich82GS750TZ]

You’re missing the spring and pin that go in the hole.

part #s 40, 41 here. https://www.partshark.com/oemparts/a.../gear-shifting

[rphillips]

Yep, the part that bolts onto that has 6 little holes (contact points) that the pin in the part you're showing makes contact with, as it rotates, to complete the circuit to each indicator light.

[jasonadams74]

Yes! Complete engine rebuild and this little part! LOL Thank you guys

[Rich82GS750TZ]

Look on the floor. That’s where I found mine. A month after taking the engine out of the frame
