How to check your ignition coil

[kokar]

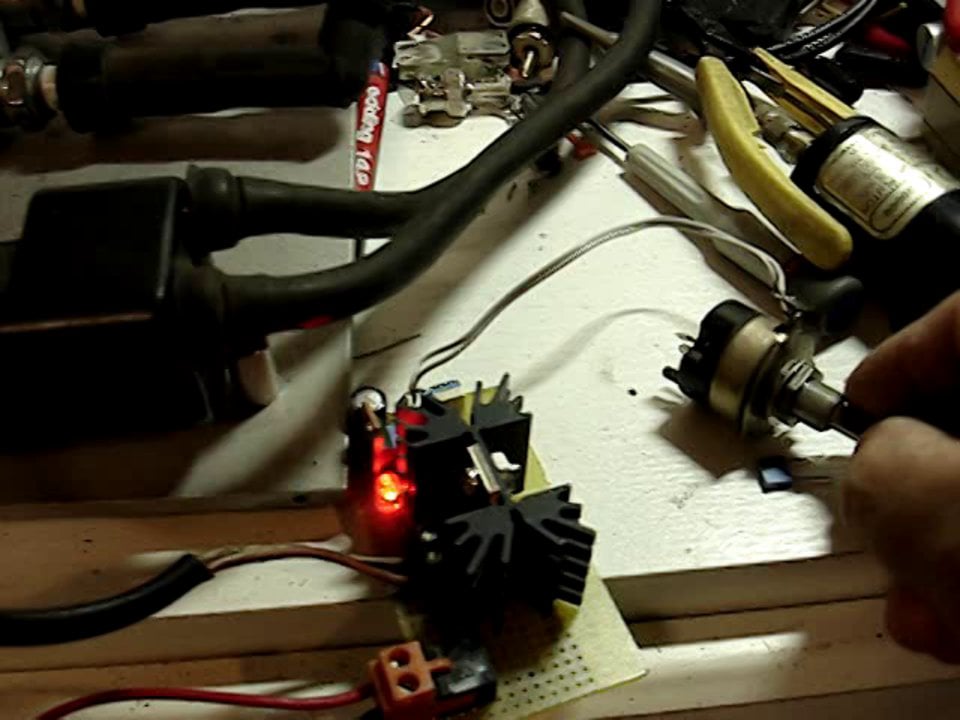

i was made this circuit to test ignition coil

the basic circuit is the following



the controller is based on 555 ic

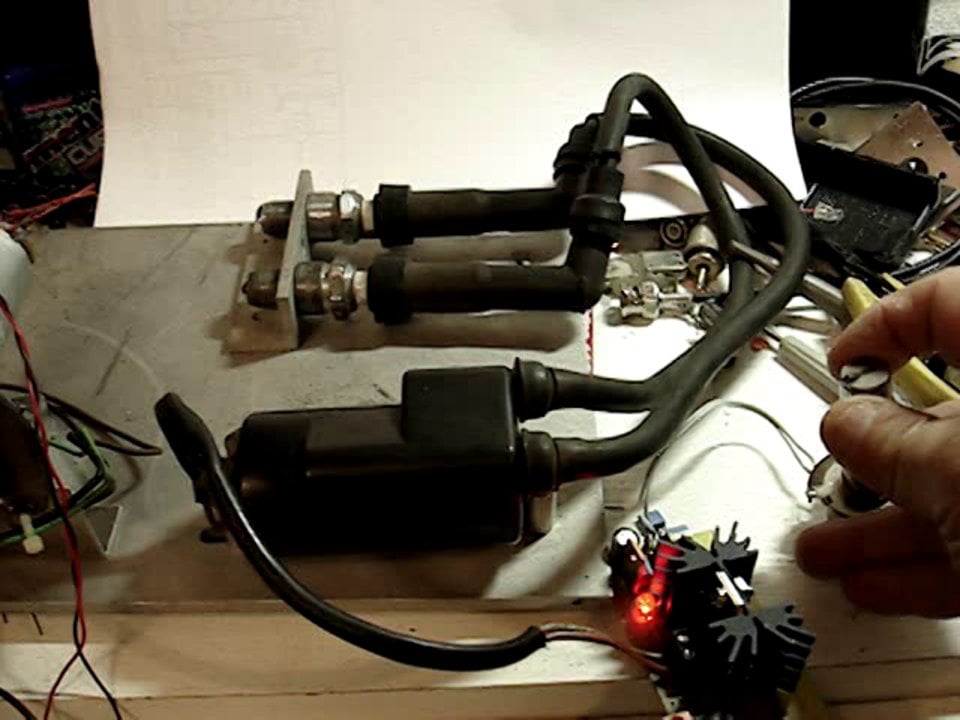

and this is the video of my testet on real life

https://vimeo.com/68059473

https://vimeo.com/68059472

i hope that it will helped the community of GSresources






.

[eil]

Hey nice, thanks for sharing. The ever so versatile 555 in action.

So the coil goes where R6 is, correct?

[posplayr]

Nice Unit


..........................

[tkent02]

Interesting how the far spark plug's spark was in exactly the same spot the whole time, while the near one was jumping all over the place. Wonder why?

[kokar]

Hey nice, thanks for sharing. The ever so versatile 555 in action.

So the coil goes where R6 is, correct?

That is correct





.

[kokar]

Interesting how the far spark plug's spark was in exactly the same spot the whole time, while the near one was jumping all over the place. Wonder why?

i think that is because the spark plug is old and have a lot of carbon on it.






.
