1981 gs750 (gs750e) Retro Racer project

[LarsKroghStea]

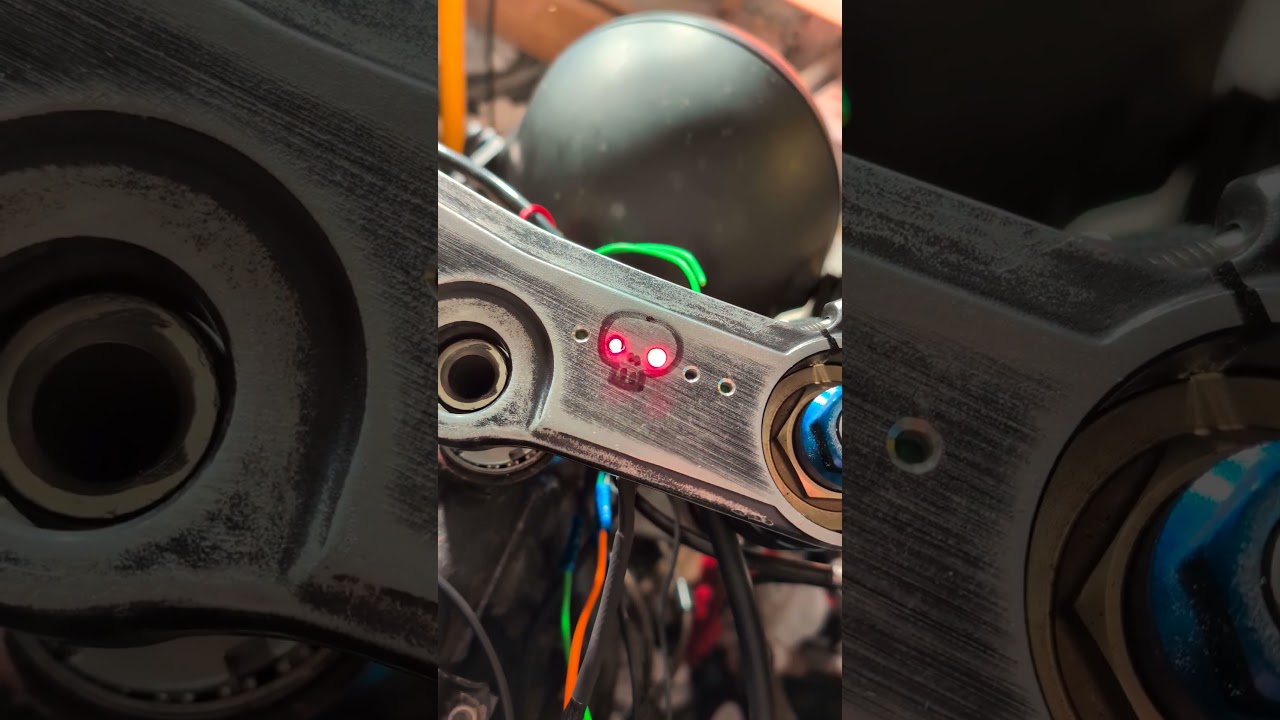

I soldered the LEDs to a protoboard with 510Ohm resistors in series (as the LEDs are 3V max /20 mAh). The black ground wire is looped here for testing, but the final version has ground wires. One in common for turn signal/high beam, and one to ground the oil light. I bought quality LEDs, but they can brake so i made the oil pressure light (skull) reduntant and with separate resistors.

[LarsKroghStea]

The switches are reconfigured:

Left is:

1. Lights. Short press - blink high beam, longer press - switch high/low, even longer - turn off.
2. Turn Left. Short press - blink 3x, longer press - blink continously. Stop with short press.
3. Turn Right. Press both 2 and 3 for hazard lights

Right is:

1. Start. Read below.
2. Horn (Can also be used to configure M-unit, but I use my phone for that)
3. Motogadget Mini operation (configuring and switching between infoscreens)

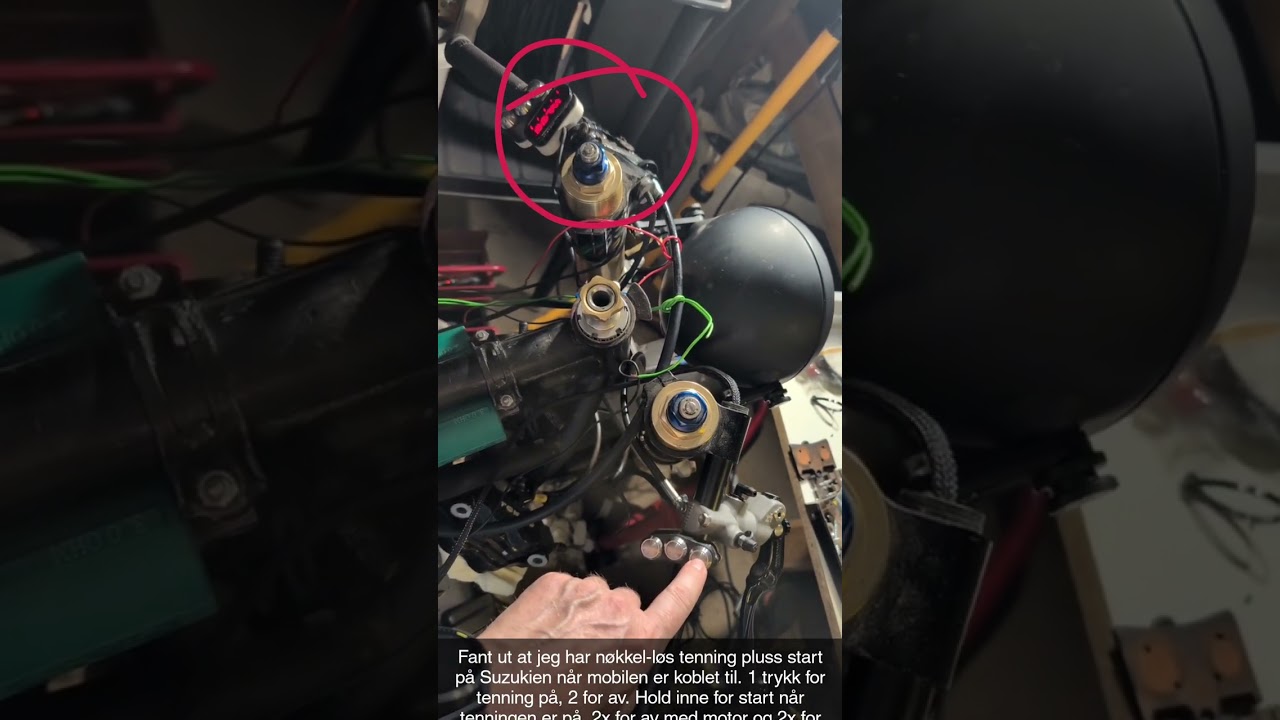

The keyless start is configured like this:

• Approach the bike with bluetooth turned on and mo.ride app (service) running on your phone. The phone will connect to the bike and a (turn)-light signal will tell you it's connected.
• Push start x1 to turn on bike. Motogadget Mini display shows startup animation.
• Use starter button to start your engine. Light turns on automatically. Light can be turned on an off by holding light button
• Press Start x2 to stop engine.
• Press Start 2x again to turn off ignition

In the video I'm testing the system without starter relay connected.

The display can be configured for both horizontal and vertical use.

[LarsKroghStea]

When doing th R1 monoblock-swap, there is a choice between switching from 298 to 310mm rotors, switching to 320mm rotors and using 5mm spacers or milling 6mm from the calipers at the contact point (red markings on image).



I don't want bigger rotors, as I think they look out of place on these bikes, so I'm choosing the last option. I will post the result later this week

[Rich82GS750TZ]

Thanks for hanging in there and updating the thread. Looks great.
