I just got all the above mentioned items. Is there anything else I should know about dropping these into 1100 cases? I'll have the basket welded.
-
Required reading for all forum users!!!
Welcome!
Register to access the full functionality of the GSResources forum. Until you register and activate your account you will not have full forum access, nor will you be able to post or reply to messages.A note to new registrants...
All new forum registrations must be activated via email before you have full access to the forum.A Special Note about Email accounts!
DO NOT SIGN UP USING hotmail, outlook, gmx, sbcglobal, att, bellsouth or email.com. They delete our forum signup emails.A note to old forum members...
I receive numerous requests from people who can no longer log in because their accounts were deleted. As mentioned in the forum FAQ, user accounts are deleted if you haven't logged in for the past 6 months. If you can't log in, then create a new forum account. If you don't get an error message, then check your email account for an activation message. If you get a message stating that the email address is already in use, then your account still exists so follow the instructions in the forum FAQ for resetting your password.Have you forgotten your password or have a new email address? Then read the forum FAQ for details on how to reset it.
Any email requests for "can't log in anymore" problems or "lost my password" problems will be deleted. Read the forum FAQ and follow the instructions there - that's what we have one for...
-
Returning Visitors
If you are a returning visitor who never received your confirmation email, then odds are your email provider is blockinig emails from our server. The only thing that can be done to get around this is you will have to try creating another forum account using an email address from another domain.
If you are a returning visitor to the forum and can't log in using your old forum name and password but used to be able to then chances are your account is deleted. Purges of the databases are done regularly. You will have to create a new forum account and you should be all set.
G
Guest
Guest
You'll also need 1150 pistons with 20 mm wrist pins.
Hmmm, Well I don't have an answer to your question, but I do have one of my own.
What is the benefit/difference of the 1150 crank over the 1100? And why would you "need" the 1150 pistons if you're not changing the jugs?
Are they the same bore, just different stroke? in that case, shorter pistons? Just curious is all...
What is the benefit/difference of the 1150 crank over the 1100? And why would you "need" the 1150 pistons if you're not changing the jugs?
Are they the same bore, just different stroke? in that case, shorter pistons? Just curious is all...
G
Guest
Guest
The pistons for the 1100 have smaller wrist pins. The 1150 crank has a bigger left end, so it's less prone to breaking off. It's also welded after its pressed together, so it can't twist.
G
Guest
Guest
it looks like I can still use the 1100 cylinder? The bore size can go to 1166.
1166 isn't very common for the 20mm pins.
an 1150 cyl. would be the ticket...could go 1198 turbo pistons and have plenty of wall thickness left.
let me know if you need one.
an 1150 cyl. would be the ticket...could go 1198 turbo pistons and have plenty of wall thickness left.
let me know if you need one.
G
Guest
Guest
Could you pm me a price. Will my 1100 head work?
1100 head and cams will be fine for your application.
I dont think anybody answered your question. There is no benefit to the 1150 crank unless you want to go bigger than 1166 cc. I don't believe 1229 is a standard size zip ston for the 1100 crank:
A
amxsteve
Guest
Pretty sure you can use oil cooled gixxer pistons as well but I have been known to be wrong.
G
geek
Guest
Virgin core, new 493 rods, all new bearings, welded, with SC 1100 gear. Never used the larger tooth gears or the 750. Last thing I would do is swap out my used 1100 crank for an unknown used 1150 stock crank. Call FBG and see who's doing cranks.
G
geek
Guest
Right is a stock welded up basket, center has an aftermarket thicker backing plate and 1100 SC gear, left is billet with thicker backing plate and 1100 gear. Left is what you want.
G
geek
Guest

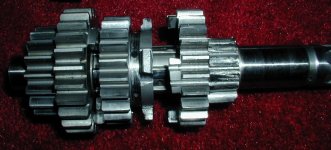

Stock GS with billet shaft, 2nd and 3rd. Pro cut, notice damage....
G
geek
Guest
Virgin core, billet shaft, 2nd, 3rd. Procut One pass...
G
geek
Guest
Ward pickup may work for your dyno only pulls. It would not work for me. Note the teeth.
G
geek
Guest
G
geek
Guest
If you use a stock transmission, with the billet parts, you may want to consider removing the stock bearings too.
G
geek
Guest
Little Rajay E/F 40 in the upper right. I have been running the plain bearing Garrets for some time now with no problems. Have a hybrid on the busa that I ran all summer. Good stuff but won't fit for your stock chassis. Look at the one in the lower left....
