    Tachometer gauge screws fallen out

    Arghh! I'm red lining with the engine turned off!

    The two screws that hold the dial template in place have fallen out, any tips on how I can pull it apart to screw them back in?

    #2
    Haven't seen that happen before. Would make you think someone previously had it open for some reason.
    The chrome bezel around the glass can be prised off gently by lifting the lower outside edge bit by bit all the way around with a small screwdriver. Try not to kink it as it will go back looking better that way.
    97 R1100R
    Previous
    80 GS850G, 79 Z400B, 85 R100RT, 80 Z650D, 76 CB200

    Comment


      #3
      Pretty standard for these screws to come out. Mine came out between 17,069 miles and 17,187 miles:

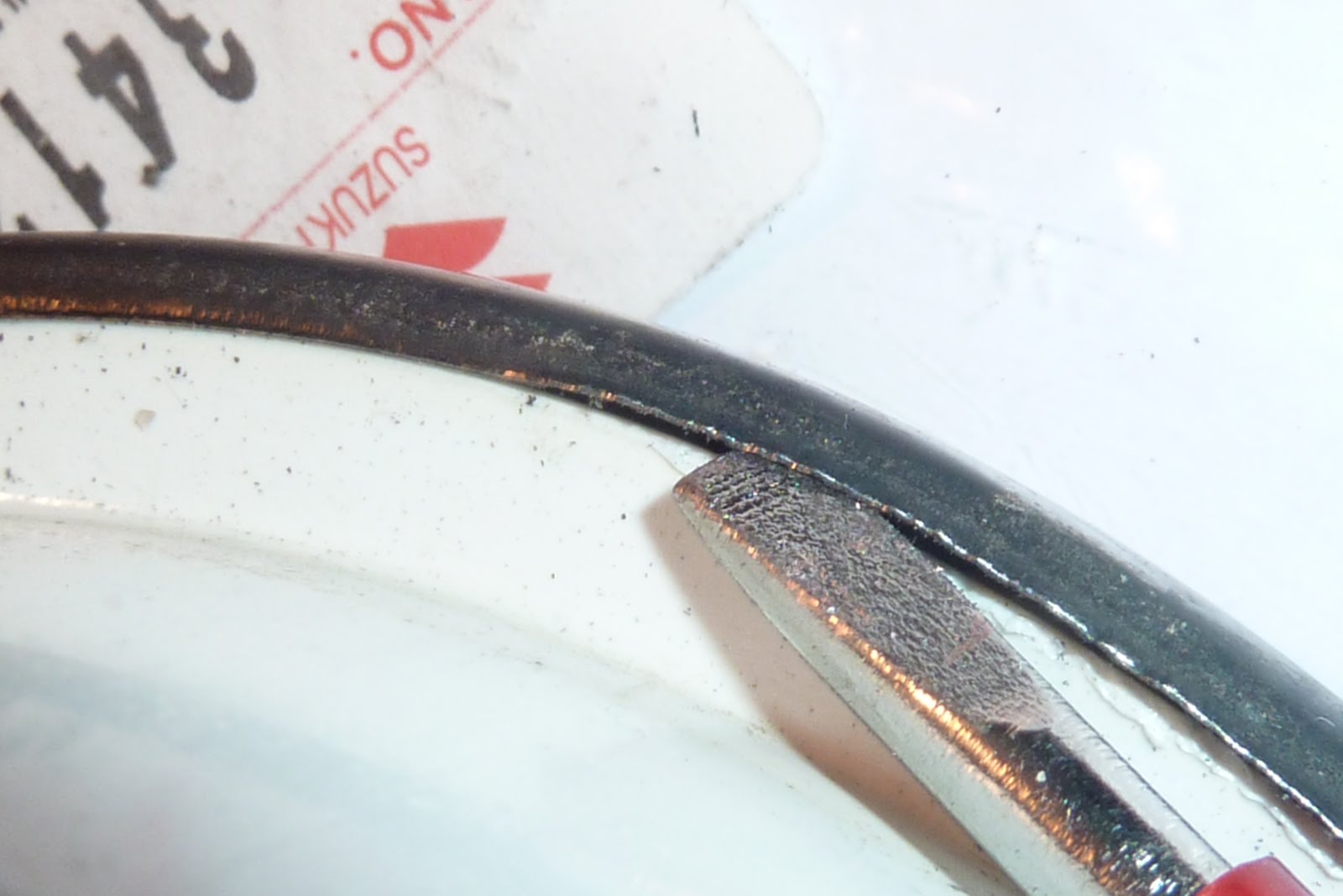

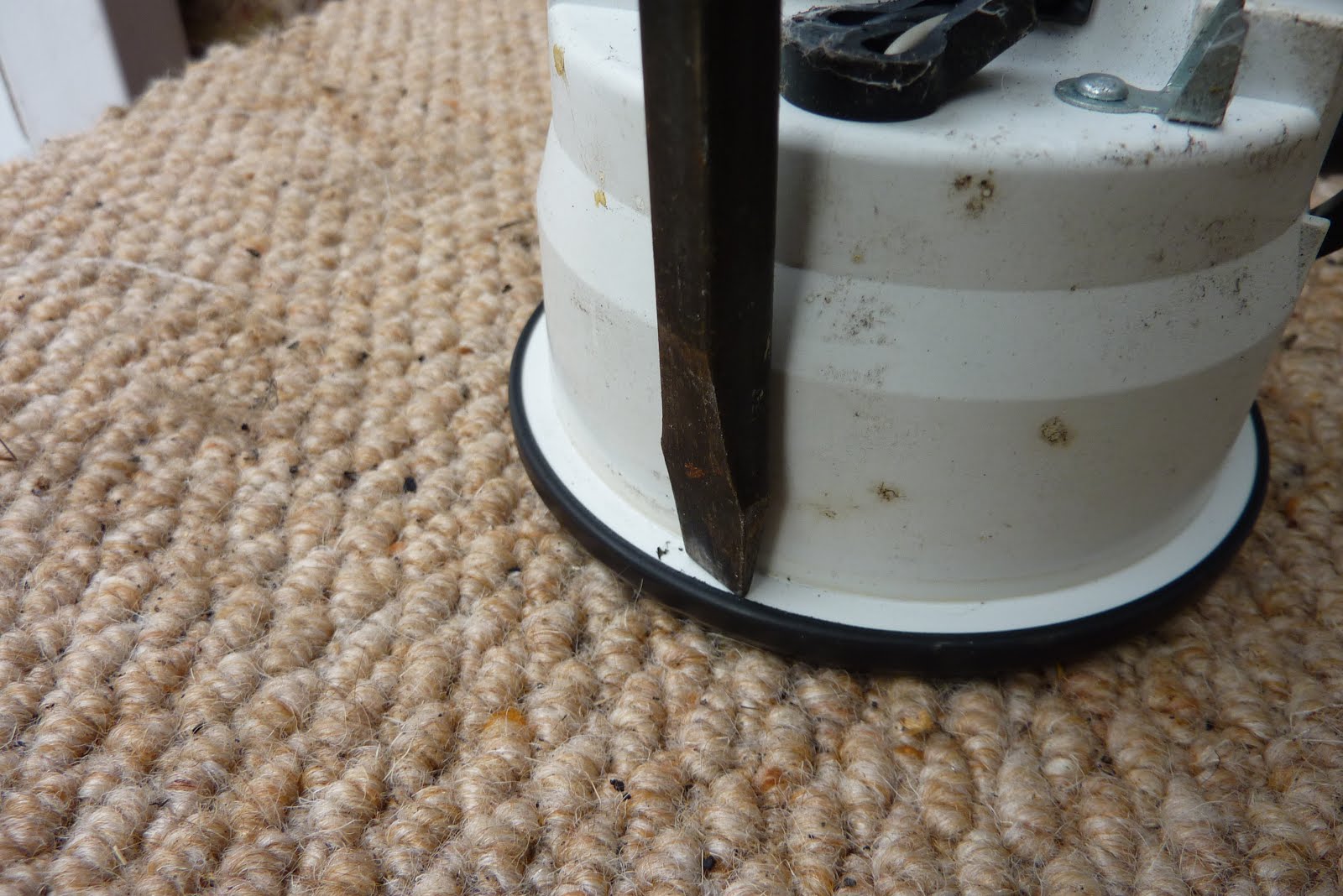

      Take the bezel off gently, thread lock/loctite the screw back in, do the same with the other one, clean up the glass and fascia, bung it back together.



      Richard
      sigpic
      GS1150 EF bought Jun 2015
      GS1150 ES bought Mar 2014: ES Makeover Thread AND blog: Go to the Blog
      GS1100 G (2) bought Aug 2013: Road Runner Project Thread AND blog: Go to the Blog
      GS1100 G (1) Dad bought new 1985 (in rebuild) see: Dad's GS1100 G Rebuild AND blog: Go to the Blog
      Previously owned: Suzuki GS750 EF (Canada), Suzuki GS750 (UK)(Avatar circa 1977), Yamaha XT500, Suzuki T500, Honda XL125, Garelli 50
      Join the United Kingdom (UK) Suzuki GS Facebook Group here

      Comment


        #4
        Picture speaks a thousand words. Now if I could just find an adapter cable for my box brownie
        97 R1100R
        Previous
        80 GS850G, 79 Z400B, 85 R100RT, 80 Z650D, 76 CB200

        Comment


          #5
          Great pics!

          Same thing happened to my GS850. Right after it turned 100,000 miles, one of the screws fell out on the speedo face. Soooooooo incredibly annoying.

          I used a smaller screwdriver than shown in the pics. Take your time and it's not all that hard.
          1983 GS850G, Cosmos Blue.
          2005 KLR685, Aztec Pink - Turd II.3, the ReReReTurdening
          2015 Yamaha FJ-09, Magma Red Power Corrupts...
          Eat more venison.

          Please provide details. The GSR Hive Mind is nearly omniscient, but not yet clairvoyant.

          Celeriter equita, converteque saepe.
