Jdub goes there 1981 650e rebuild

This cam thing got me wondering, so looked it up. It says the hardened surface of the cam should be min. of 2.54mm. So, like he ^^^^ said, your 0.4mm should be of no concern.

Trying to get Cams installed.
I noticed that the initial positions with arrows aligned per manual do not allow the journals to seat. There is a cam lobe that is just contacting a shim enough to raise the journal from the bearing surface. Appears to be the case on both cams. Is this normal?

There won't be a place where a lobe is not on a bucket or rocker, depending on the bike. Check the manual, you check half the valves with cams in one position and the other half with cams in opposite position. If there was a place where no lobe was contacting, you'd set the cams at that point and check all at the valves without needing moving the cams.

Thanks rphillips. I cranked down the holders at the synced position.

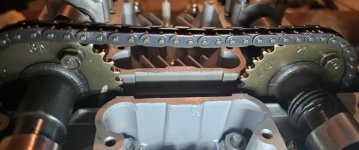

Now I'm counting cam chain links and my manual says 19 link pins between the vertical arrows on the sprockets (link pin 1 lines up on the exhaust side and link pin 19 on the intake so actually only 18 links between as I read it).
Well, this causes the intake arrow to rotate toward the exhaust side and I have not replaced the cam chain. If I adjust by one link (1-20), both arrows are vertical and the chain is quite taut.

I've watched a few GS550 videos and see that they indeed use 1-20 links. From what I understand, the GS650E is just a bored out version of the 550, so is it possible that the manual is not very precise and possibly means 19 links between alignment arrows?

I think I answered my own question. The manual is not correct as it is listed as links 1-20 on the GS650G manual as well as several other models.
The manual also doesn't seem to match the timing marks. It shows text that doesn't match the timing plate and then shows two different sides of the T to line up.

I'll just ask if this is the correct alignment of the timing mark for TDC?


Went with the above. Doesn't matter. Can't turn the crank with camshaft holders torqued down. It rotates when the holders are backed off a couple of turns.
I knew there would be days like this.

How tight is the cam chain? you did loosen it didn't you? thinking that may make a difference

I followed the manual except i counted out 20 link pins instead of 19. Bolted the holders down evenly, exhaust side first. Then intake cam allowing some slack. Then I installed the tensioner.
Rotated the crank one turn until slack between cams was removed, but it isn't overly tight.
Then I torqued down the camshaft holders and couldn't turn the crank anymore. I lubed the journals and bearings generously.


I pulled out the valves and wanted to see how the camshafts turned without resistance.
Well, turns out that the journals on both are binding. I cant budge them when the holders are snuggled down. 1/4 turn back on holder bolts and they do rotate, but the exhaust side is still a little sticky.
Could bead blasting have contributed to this?

I now think I know why I have binding on the camshafts.
The machine guy I had repair the damaged valve cover bolt threads, said he decked the top of the head also because of scratches resulting from attempts to remove the broken bolts.
I cleaned up the journal bearings and cap surfaces with wd40 and 5000 grit sandpaper. I can finger tight the bolts and the camshafts still move with a small amount of resistance. As soon as I tighten them up further, the camshaft wont budge.
So close to the finish line.


Ooh, that’s too bad. I don’t know how you come back from that. The removed material from the top of the head is now making your cam caps pinch the cams tight and your cam journals are no longer in aligmnent. Others may have some better advice. I think I’d be looking for a new (used) head complete with cam caps.

Even if I could somehow hone the journal and cap bearings to freely spin the cams, I'd be looking at a full set of thinner shims and no guarantees.
I can clearly see that the caps can rock to either side with the cams installed. I measured a 0.33mm gap when pressed down flush on one side, so I'm about 0.165 mm from the cap being flush to the surface.
If I had the bearings honed evenly, the camshafts would drop down by about 0.08mm. With my smallest shim being 2.55mm, that would become a 2.45mm shim if my math is correct.
The question is how would the journals respond to the additional 0.16mm gap?
​I saw a discussion where a gs450 owner had the same issue, but thinks he lost enough material by using a brush tool designed for gasket removal. He ended up replacing the head.

The way I understand it is the cam journals/caps are line bored together from the side at the factory, so each set of caps is mated to the exact position in a specific head. Well you've got practice at cleaning up and painting engine parts. What's one more head? Now to find a good used head w/ caps.

jdub6092 said:
I now think I know why I have binding on the camshafts.
The machine guy I had repair the damaged valve cover bolt threads, said he decked the top of the head also because of scratches resulting from attempts to remove the broken bolts.
I cleaned up the journal bearings and cap surfaces with wd40 and 5000 grit sandpaper. I can finger tight the bolts and the camshafts still move with a small amount of resistance. As soon as I tighten them up further, the camshaft wont budge.
So close to the finish line.

Click to expand...

Any reputable machine shop would know better than to do that! :-k

Your "machine guy" should be buying you another head IMHO!

Well, it's amazing how many folks in machine shops don't know much about motorcycles. Guessing they did get the surface flat, just a little too low, and never had clue they messed up.

jdub6092 said:
I now think I know why I have binding on the camshafts.
The machine guy I had repair the damaged valve cover bolt threads, said he decked the top of the head also because of scratches resulting from attempts to remove the broken bolts.
Click to expand...

Your machinist is a moron.

Unfortunate, this guy had a reputation for quality work.
He recommended a mechanic who said he has had success at using valve lapping compound and spinning the cams by hand. However, he said he hasn't had to grind off as much as .16mm before.
Since I'm looking at a new head, I figured I'd give it a try myself. Doing it in increments. Seems to work. I can tighten the caps down a little more each time before it binds. The journals remain quite smooth.

Anyway, I got the wiring completed and everything except for the untested charging system checks out. Likely to need a turn signal relay as it is hit and miss on blinking.
Front brakes bled and grab very nice just rolling down the driveway. Suspension (front) seemed a bit soft.
Must have made a mistake on the rear master rebuild, so will try again. Internal parts are new. Think I may have forgotten to lube the rubber as it doesn't push back smoothly.


Going to take a break for a few weeks and refresh.

There was absolutely no reason for him to machine the entire top of the head, all that was needed was to dress up the course of the sealing face, but that would have taken time and effort. The milling machine, the way he did it, was just left on its own to get on with the job, utter laziness, and moronic.
As a matter of interest, just how bad were the dings and marks? I'd bet they were easily filed smooth and filled in with steel putty.

Grimly said:
There was absolutely no reason for him to machine the entire top of the head, all that was needed was to dress up the course of the sealing face, but that would have taken time and effort. The milling machine, the way he did it, was just left on its own to get on with the job, utter laziness, and moronic.
As a matter of interest, just how bad were the dings and marks? I'd bet they were easily filed smooth and filled in with steel putty.
Click to expand...

There was one bolt hole that required welding and another couple where i attached a vice grip to see if i could remove the broken bolts. I scratched it up, but really just surface scratches and nothing too deep.. i think the extra material from the weld was the main reason he did it. Probably could have carefully filed it down and sanded to blend in.

20240826_094156.jpg What still can be with my old tank. Have an NOS tank taht will be added.
If I look at this while Im taking my break, maybe it will motivate me to get over the cam issue and get this thing done.

Back after a 3 week tour of Eastern Europe.
Was set up to purchase a new head on EBAY after making an agreement with the seller to delay the shipment.
Then my small shoulder bag with wallet, cards, cash, drivers license, passport and spare phone was stolen in Lithuania. Included the credit card I would be using.
Then someone purchased the head as I had to cancel my credit and debit cards.

I ended up stuck in Vilnius, Lithuania for four days waiting to get an emergency passport while my family continued on to Estonia and Hungary. Was Labor Day weekend, so embassy staff took off early on the Friday it happened and took the three day weekend as well with no staff available.
What a cushy job. They work 2 hours in the morning, take a 90 minute lunch, then 2 more hours in the afternoon.
Luckily, I was able to get the emergency passport on Tuesday before they left for the day. Then straight to the airport to Budapest, Hungary through Frankfurt, Germany to meet up with my family. Could have used the $2k hit to make my bike show ready.

Anyway, I'm going to first see if I can grind down the cam bearings with lapping compound. If that doesn't work, there are a couple more heads available on the bay.
